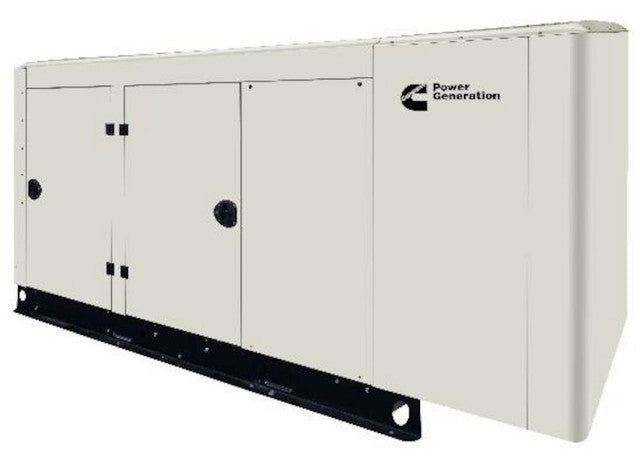

Cummins RS80 Quiet Connect 80kW Generator 120/208-Volts 3 Phase NG/LP | RS80
The Cummins RS80 Natural Gas and LP Propane Generator for Home and Small Business backup. The 3 phase 120/208-volt generator has a robust design and undergoes rigorous testing. Designed to operate under extreme conditions, the generator starts in temperatures down to -40° F. The RS80 is code compliant with U.S. EPA emissions requirements, is UL-2200 listed, IBC Seismic, and NFPA 110 capable with the correct accessories and installation.
Cummins includes a 2-Year base warranty and offers extended warranty options.
Cummins 80kW Generator
The 80kW Generator has a flexible exercise mode to fit the needs of any installation. Set the generator to exercise at specific times, on a regular schedule, for as little as 2 minutes every six months.
An advanced, powder-coated aluminum sound level 1 enclosure withstands wind loads up to 180 MPH in accordance with ASCE 7-10. The level 1 enclosure reduces noise sound to 73dBA. Service doors simplify access for service and maintenance.
Cummins RS Series Generators feature Power Command 1.1 Electronic Control for automatic starts and stops, output metering, auto-shutdown for fault detection, and NFPA 110 Level 1 compliance. Power Command regulates voltage to ±1% and frequency to 0.25% at 60 Hertz.
Cummins Quiet Connect Generator
Cummins RS80 generator engine is a natural gas/propane engine. Fuel type is selectable in the field.
The 5.9 liter turbocharged and aftercooled in-line 6-cylinder engine has a cast-iron block. Starting system is a 12-volt negative ground with a 850-Amp capacity down to 0° F. Uses a spin-on oil filter with relief valve. Rated speed is 1800 RPM.
Cummins RS80 Quiet Connect 80kW Generator 120/208-Volts 3 Phase NG/LP | RS80
Product Specifications
Model
Model Number; RS80/A054F849
Rated Watts; 80kW Natural Gas or LP Propane
Voltage; 120/208 Volts 3 Phase
Enclosure; Powder Coated Aluminum Sound Level 1
Decibel Rating; 73dBA with Sound Level 1 Enclosure
Series Name; Quiet Connect
Features
Starting System; Automatic
Low Oil Alert; Low Oil Shutdown
Mainline Breaker; 125-400 Amps Field Settable
Mounting Pad; Prepared Slab Required
Dimensions; 118.7L x 40.0W x 58.3H
Warranty Information
Consumer Warranty; Cummins 2-Year Base Warranty
Commercial Warranty; Cummins 2-Year Base Warranty
Engine
Engine Size; 5.9 Liter Inline 6-Cylinder Turbocharged & Aftercooled
Cast Iron Sleeve; Cast Iron Block
Cooling System; Liquid Cooled
Alternator
Alternator Type; Brushless 4-Pole, 3 Phase, 12 Lead
Auto Voltage Regulation; Yes
Fuel
Fuel Type; Natural Gas or LP Propane
NG Consumption @ Full Load; 1083.5 Cubic-Feet / Hour
NG Consumption @ Half Load; 678.7 Cubic-Feet / Hour
LP Consumption @ Full Load; 11.56 Gallons / Hour
LP Consumption @ Half Load; 7.23 Gallons / Hour
